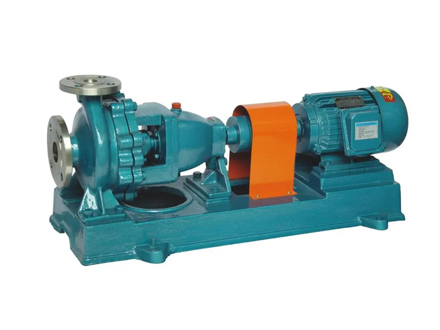

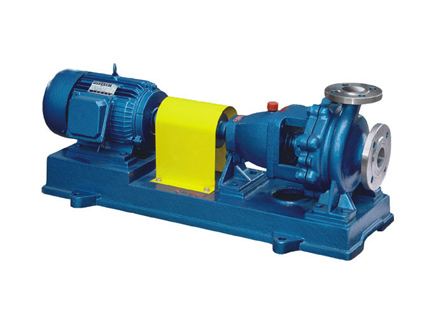

IH chemical pump

IH chemical pump is a commonly used centrifugal pump, mainly used to transport various chemical media, such as acid, alkali, salt solution, organic solvent and so on. It has the following structural features:

1. Pump structure: IH chemical pump adopts single stage, single suction, cantilever structure, the pump body is composed of two shells before and after, connected by connecting bolts. The front housing has an inlet and an outlet, and the rear housing is equipped with a bearing and a sealing device.

2. Impeller structure: The impeller of the IH chemical pump is a closed impeller, the number of blades is less, the blade thickness is larger, and it has good wear resistance and corrosion resistance. The impeller is connected with the pump shaft and supported by the bearing.

3. Sealing structure: The sealing structure of IH chemical pump adopts packing seal or mechanical seal, the commonly used materials of packing seal are polytetrafluoroethylene, acid and alkali resistant rubber, etc., and the mechanical seal is made of corrosion resistant materials.

4. Pump shaft structure: The pump shaft of the IH chemical pump is an integral structure, made of high-strength materials, with good rigidity and corrosion resistance.

IH chemical pumps have a wide range of applications, suitable for the following applications:

1. Chemical industry: IH chemical pump can be used to transport various chemical media, such as acid, alkali, salt solution, organic solvent and so on. Common applications include chemical production, petrochemical, oil refining, pharmaceutical and so on.

2. Environmental protection project: IH chemical pump can be used for sewage treatment, wastewater treatment, desulfurization and denitrification and other environmental protection projects, transport all kinds of sewage and waste liquid.

3. Iron and steel metallurgy: IH chemical pump can be used in iron and steel metallurgy industry, conveying a variety of acid washing liquid, alkali washing liquid, cooling water and so on.

4. Power industry: IH chemical pump can be used in power industry circulating water system, cooling water system, water supply system, etc.

It should be noted that when selecting and using the IH chemical pump, the appropriate material and sealing method should be selected according to the specific medium properties, temperature, concentration and other requirements to ensure the normal operation and safety of the pump. At the same time, it also needs regular maintenance and maintenance to keep the pump in good condition.
